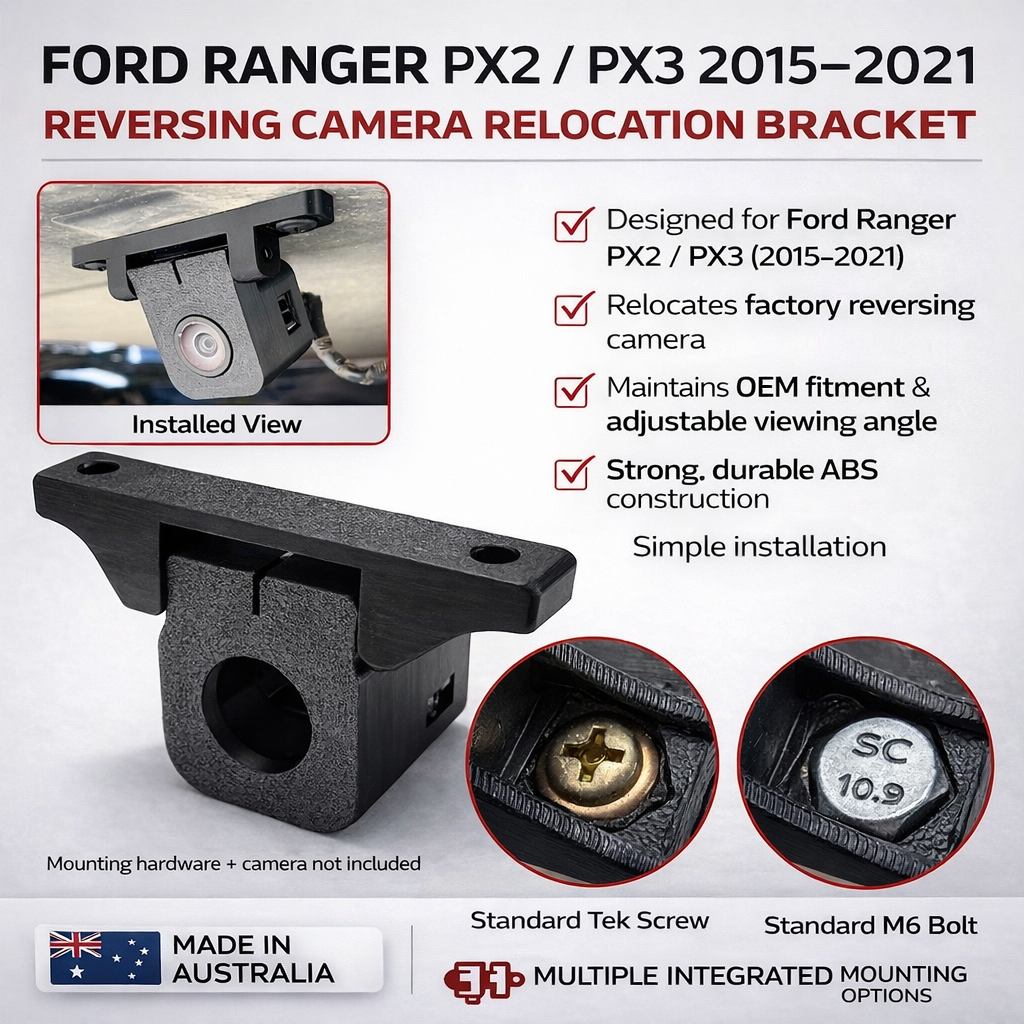

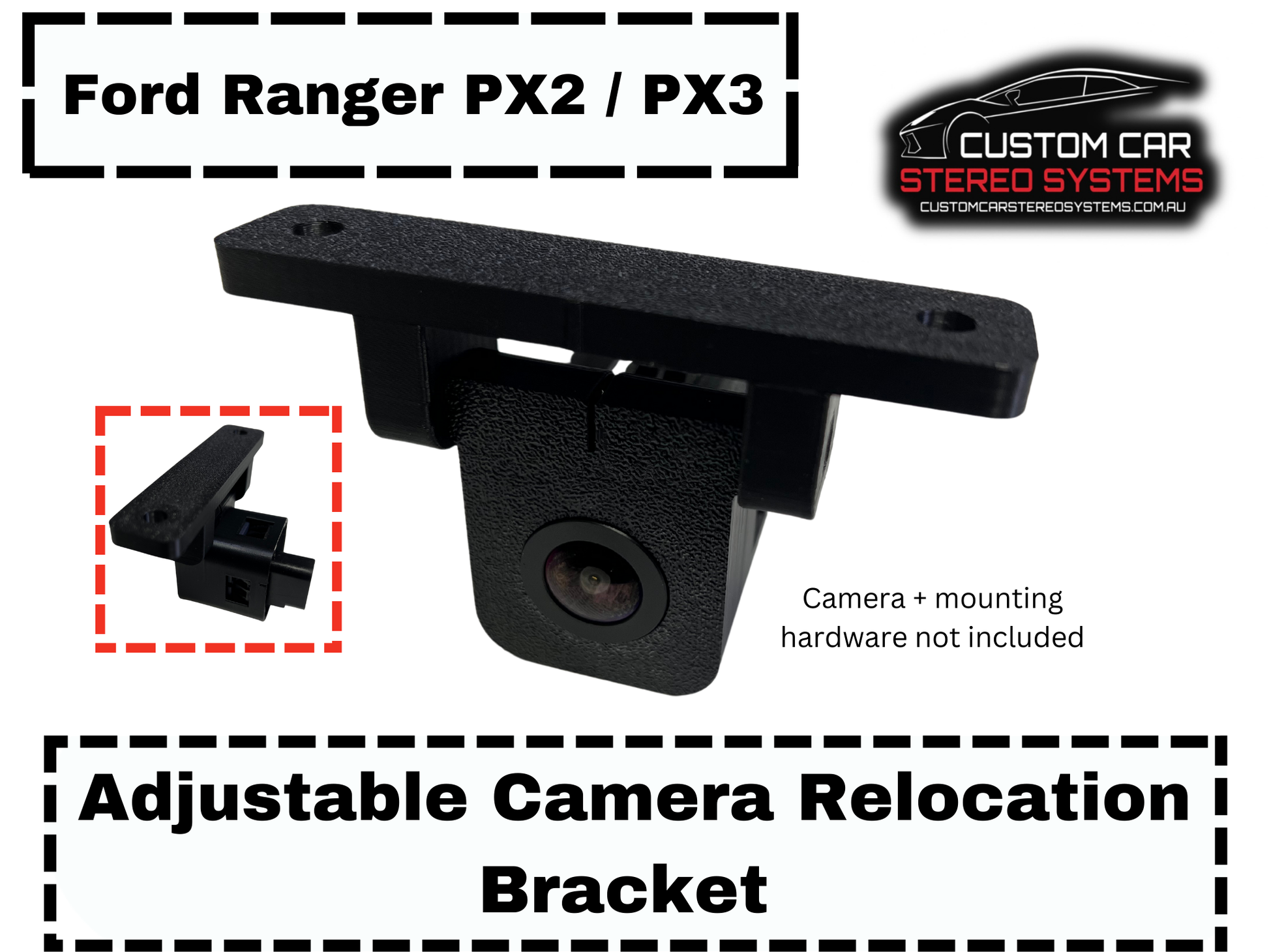

Ford Ranger PX2 + PX3 Reverse Camera Relocation Bracket Tub to Tray Conversion

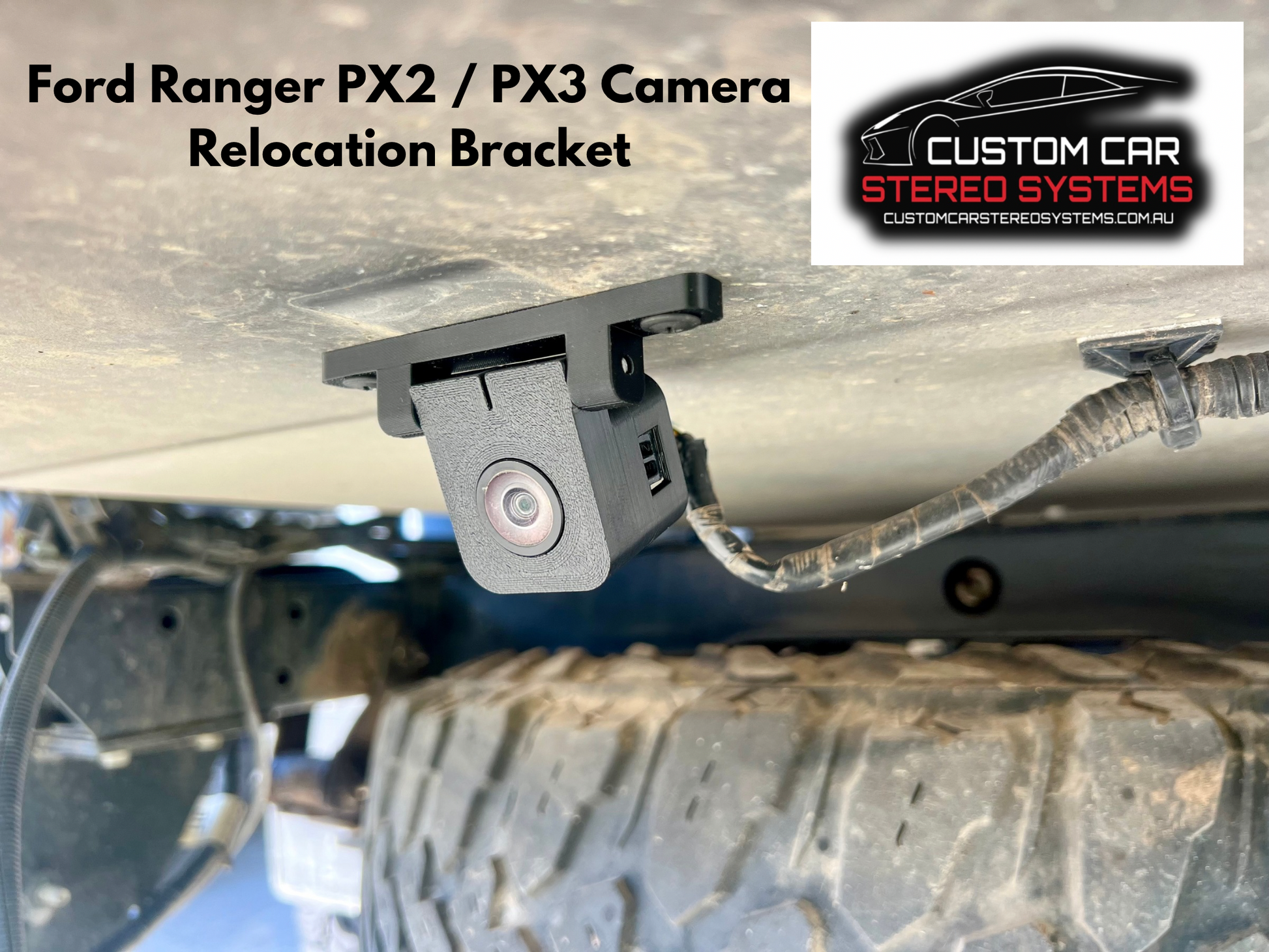

Have you swapped out your factory tub for a tray and need to relocate the reverse camera? This bracket is designed to safely house the factory Ford camera whilst giving you the ability to mount it in your desired location after changing to a tray.

Made from black ABS with 316 stainless steel bolt / nyloc nut

M6 mounting holes (mounting bolts not included)

Allows the camera to swivel up / down to get the best image.

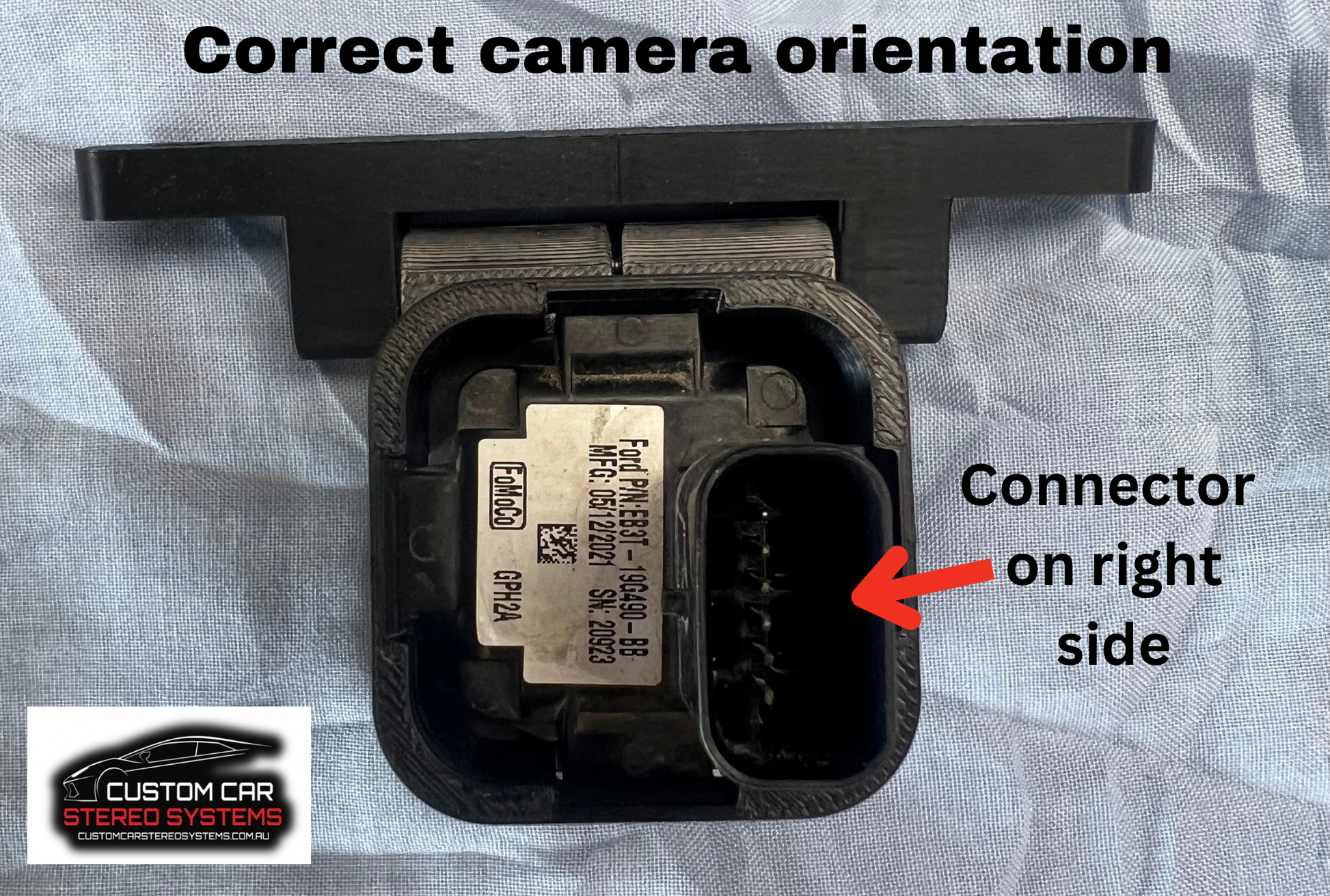

NOTE: Please make sure to orientate the camera correctly before fully inserting into the bracket. Once camera is inserted into the new bracket, removal of the camera is difficult. The wiring connector MUST be on the right side when looking from behind the camera!
