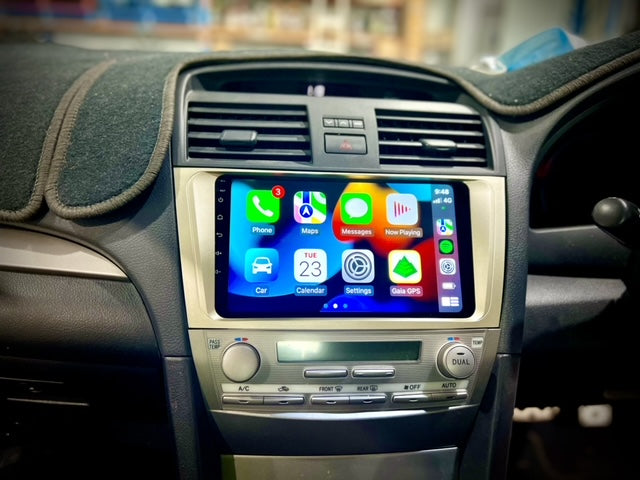

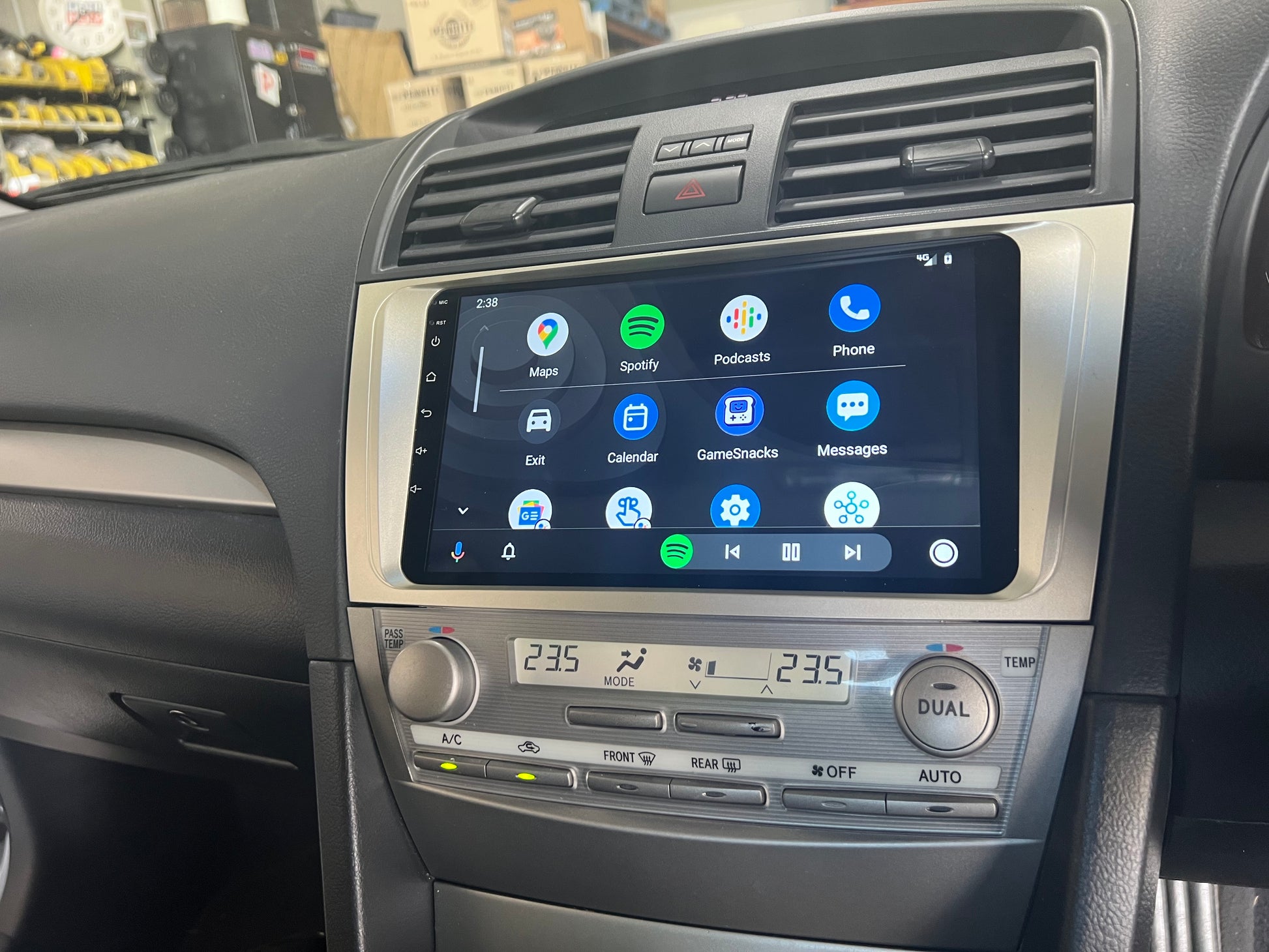

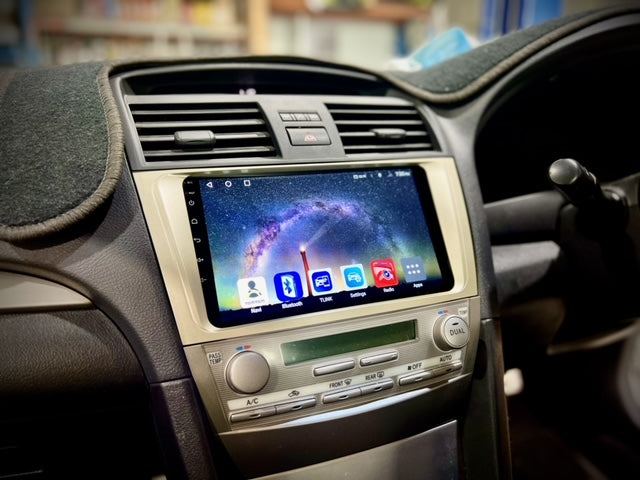

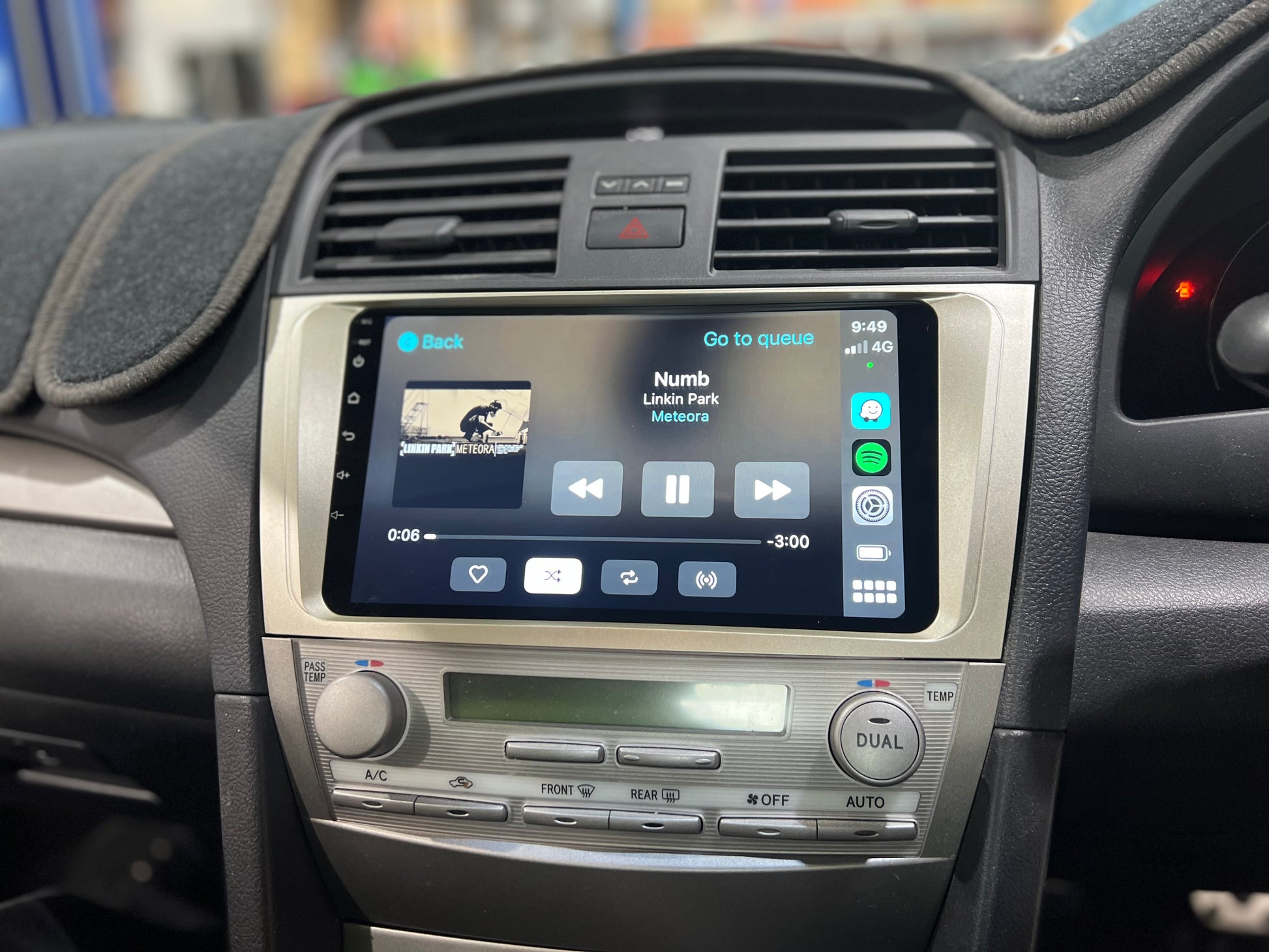

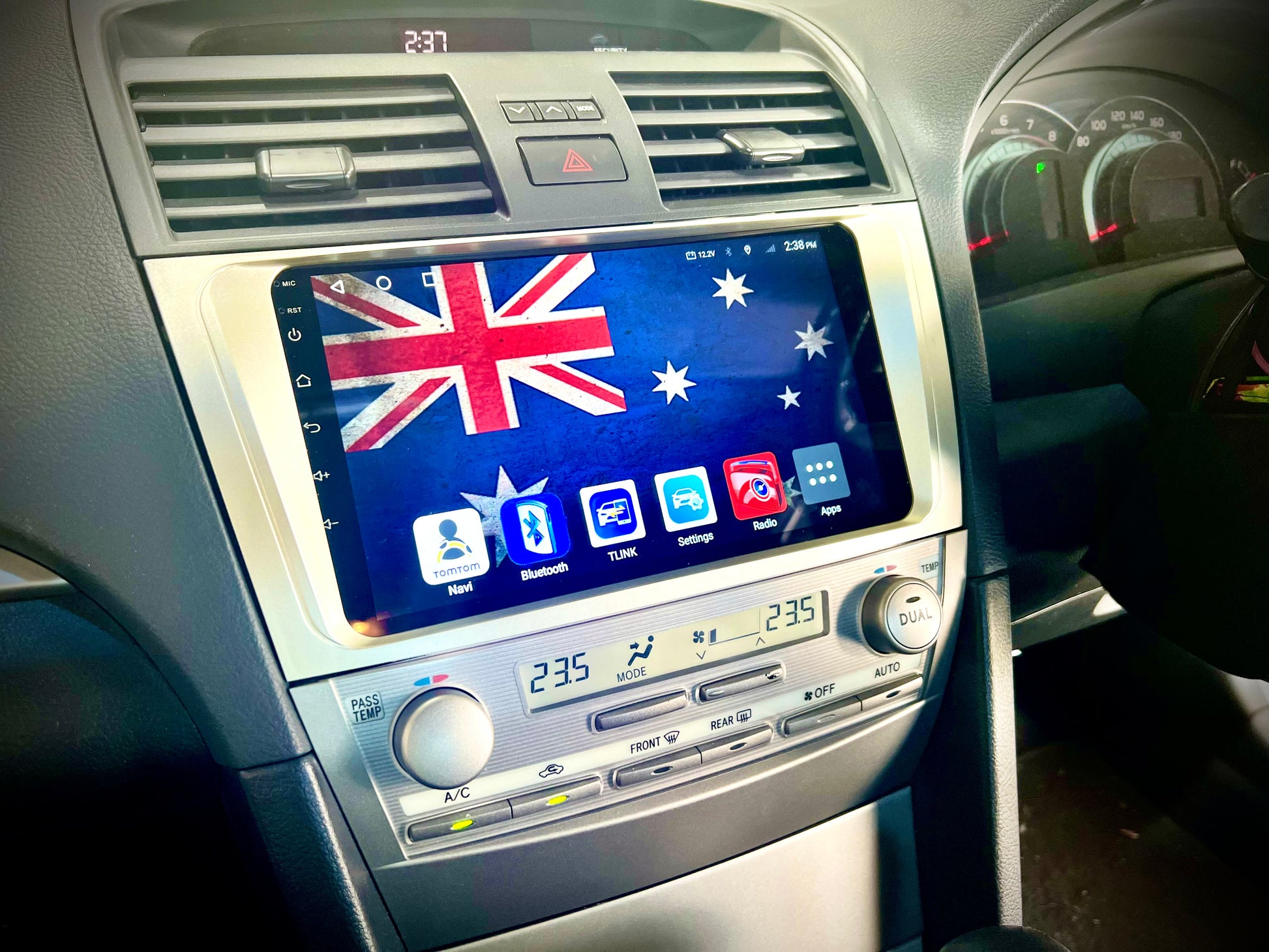

Toyota Aurion + Camry 2006-2011 9" Replacement Unit

Toyota Aurion + Camry 2006-2011 9" Replacement Unit

Compatible Models

2006-2011 models

Specifications


Latest Android 11.0 Operating System
4GB RAM and 64GB Memory

Visual:

9.0" Capacitive hardened glass multipoint touchscreen with 2.5D edges for a smooth finish
170 Degree viewing angle – extra wide without sacrificing clarity
1024 x 600 IPS screen resolution

Audio:
4 x 50w amplifier – more than twice the power of your factory unit!
2 channel + subwoofer RCA preouts – connect external amplifiers easily
48 band graphic equalizer – fine tune the sound to suit you!
Front / rear independent high pass filters
Digital time alignment
Front / rear independent bass boost with adjustable frequency



Features

WIRELESS Apple CarPlay and WIRED Android Auto
AM / FM Radio with RDS (Radio Data System), seek / manual tuning and 6 pre-sets for AM and 12 pre-sets for FM
Dual Bluetooth 5.0 – Compatible with BLE devices (connect a Bluetooth device and your phone simultaneously!)
Only 1 second turn on time!
WiFi – dual band 2.4ghz / 5.0ghz for faster connection speeds
4G SIM Card slot and antenna for permanent network access (if required)
GPS receiver / GPS Antenna
2 x USB Inputs
Reverse Camera Input with guidelines (OFF/ON)
Auxiliary A/V Input - connect an auxiliary camera on your caravan / front camera etc
Plug and play harnesses including steering wheel controls and factory reverse camera (if fitted)
Complete with dash surround kit - OEM appearance
Split screen capable – have navigation on one side and your second camera etc on the other!

Installation and user manuals (written by us!) supplied via email (PDF)


Applications Pre-Installed:
WikiCamps – search and display info of free / paid camping sites Australia wide!

TomTom Offline GPS Navigation (with Australia wide mapping pre-loaded) – Works without a phone / network connection

Netflix – stream movies (while parked of course!)

YouTube

Kayo Sports – watch the footy / cricket etc (while parked of course!)
Torque OBDII – use with our optional Bluetooth Adapter to see real-time info from your cars computer and clear trouble codes!

Google Play Store – download and install / use 1000s of apps!

Kit Contents


· Replacement unit fitted into a new vehicle-specific dash surround panel
· Plug and play main harness (NO soldering!)
· A/V Input / output harness (including 4G SIM card holder)
· External Microphone – calls work great!
· Reverse camera input harness with WiFi Antenna
· GPS Antenna
· 4G Antenna (for use with SIM card)
· 2 x 1m USB input harnesses
· Quick Start Guide (full installation and user guides provided via email)
· Custom Car Stereo Systems screen cleaning cloth + decal

NOTE: If you choose the “hazard button BELOW screen” option, some minor modifications of the dash panel is required in order for the unit to fit correctly.
PLEASE NOTE: We fully test + load all our software, mapping etc onto each unit after your order has been placed right here in Australia! This ensures you get the most up-to-date system that’s ready to go! As a result, dispatch time during normal periods is usually around 2-3 business days - during sale periods this can be 4-5 business days (not including weekends) from when you place your order. Once your order has been dispatched, you will receive emails with tracking information, a tax invoice and your install / user guide. We apologise for the delay and appreciate your patience.

Installation

Most of our products come in "kit" format with everything required to install into your vehicle, this includes "plug and play" harnesses which are designed to make the installation as easy as possible. We also provide full installation instructions (including photos) from installations we have done. We also provide a comprehensive user guide and have many videos on YouTube showing various functions of our products.
Our kits are designed for DIY installation, the hardest part of the installation is normally removing the dash panels and factory unit.
We pride ourselves on after sales service and are generally very responsive to tech support emails.
However, if you are not confident in completing the installation yourself, we do recommend utilising a local professional to install it for you. Normally, auto electricians or Autobarn stores that are local to you will be able to install your kit without issue. We can even supply you with the contact details of a professional in your area if required!
If you have organised a local professional, we recommend passing on the installation / user guide (that you'll receive after placing an order) to them on the day of the installation. Alternatively, you can give them our email (www.customcarstereosystems@gmail.com) and we will be happy to pass on the relevant documents to ensure the installation goes off without a hitch!
Installation costs do vary depending on the product, vehicle and any additional extras that need to be installed. We can provide you with an estimate on labour time / cost, simply send us an email with your vehicle details and the product/s you're interested in!
Trusted Installer Network
We also have installers we can highly recommend in the following areas:
NSW
* Sydney - Parramatta
* Newcastle
* Maitland
QLD
* Gold Cost
* Brisbane
VIC
* Lynbrook
WA
* Perth
These installers do not normally have our products in stock, so the best way is to order via our website and have the product/s sent to you. We are happy to pass on the contact details of the closest trusted installer so you can get in contact with them to book your car in!
Please note that all installation related costs are additional to the product prices and are payable directly to the installer. These installers are an independent business and are not employed by Custom Car Stereo Systems.



FAQs

Q: What’s the difference between the “basic” and standard / QLED units?

A: Our basic models are a great option for customers who are after an easy to use unit with a larger screen and wireless Apple CarPlay / wireless Android Auto. They still have the regular features you’ll find on any car stereo, this includes AM/FM radio, reverse camera input and they’re compatible steering wheel controls. However, they do not allow for additional apps to be installed and are not compatible with HD cameras.



Q: Does the unit come with a new dash frame that suits my car?
A: YES! All of our vehicle-specific units come complete with a new dash frame specific to your car. Some of our models even include a matte or gloss black finish option.


Q: Does the unit come with plug and play harnesses?
A: YES! All of our vehicle-specific units come with plug and play harnesses (no cutting or soldering is required).



Q: Will the unit retain all factory functions, including my steering wheel controls and reverse camera?

A: Yes! All of our vehicle-specific units will work with your steering wheel controls (some minor programming may be required to “teach” the system the buttons when first installed). Your factory reverse camera can also be retained with a reverse camera adapter which are available as an optional extra when ordering.


Q: Does the unit have DAB radio?
A: Not in its standard form, but we have DAB radio available as an optional extra when ordering.


Q: Does the unit use my factory microphone?
A: No, our units come with a new external microphone that can be mounted in a variety of locations, normally on top of the A pillar trim panel or on top of the steering column.


Q: Can I connect a amplifier / subwoofer to this unit?
A: Yes! All of our units have low level RCA outputs to connect amplifiers.


Q: Will I get the same or better AM/FM radio reception with your unit?
A: That’s a hard question to answer, in most cases yes you will get the same or better radio reception. In some cases, we have experienced reduced reception. This can be overcome with a booster or upgraded antenna.


Q: Can I install an aftermarket reverse camera if my car didn’t come with one?
A: YES! We have high quality reverse cameras available as optional extras.


Q: Can I connect an auxiliary camera (front facing or caravan mounted camera) to this unit?
A: YES! All of our units support an auxiliary camera. There are some limitations on this though, it’s best to contact us with specific requirements so we can clarify this for you.


Q: Is my phone going to work with wireless Apple CarPlay / Android Auto?
A: Generally speaking, if your phone is less than 5 years old it will support this function. If in doubt, send us a message with your phone model details and we can help! You can also do a simple google search.


Q: I see the unit has “dual Bluetooth”, does this mean I can connect two phones at the same time?
A: No, the dual Bluetooth chips are designed so that you can connect a phone and a Bluetooth data device (such as our OBDII adapters, dual battery monitors etc). You can connect more than one phone to the unit, but you will need to either turn off the Bluetooth of the phone you don’t want to connect, or select which phone to connect in the Bluetooth app.


Q: Can I download apps onto the unit?
A: YES! Our standard and upgraded QLED models have the Google Play store installed, we also install an alternative app (APK Pure) that doesn’t require a google account. The unit has two ways to connect to a network. The first being via a phone hotspot (WiFi) and the second being via a dedicated SIM card and antenna (SIM card holder and antenna are supplied with the kit).


Q: Do you have installations videos or instructions?
A: YES! All of our products come with installation instructions (compiled by us, written in plain English with colour photos) which are sent to you via email just after you’ve placed an order. We also include a quick start guide and QR code that will enable you to access the full installation and user guide with each unit.


Q: Can I install the unit myself?
A: YES! Provided you have some knowledge in removing dash panels etc in your car, and can follow our clear instructions, there is no reason why you shouldn’t be installing our products! Please note that if you are not confident in removing dash panels etc, then we recommend getting it installed by a professional (we can also help with suggestions here, simply send us a message after you’ve ordered and we can suggest a business that’s close to you).



Q: How much does a professional charge to install?
A: Installation charges vary depending on the vehicle, the person doing the job and the products to be installed. As a general guide, installation of our unit only ranges from $100 - $250. We can provide a more accurate estimate if you send through your vehicle details.

Q: Do you supply a tax invoice with the unit?
A: YES! As a fully registered Australian company, you will receive a tax invoice via email shortly after purchasing. Please check your “junk” email folder if you haven’t received the tax invoice within 30 minutes of placing an order.


Warranty


All of our products come with a 14 day "change of mind" refund policy and 12 months warranty (excluding ex demo products). We also offer support after this warranty period in the way of tech support and repairs.
