Toyota Land Cruiser 70 / 76 / 78 / 79 Series Facelift 2.8L & 4.5L 9/2023 + Reverse Camera Kit

Toyota Land Cruiser 70 / 76 / 78 / 79 Series Facelift 2.8L & 4.5L 9/2023 + Reverse Camera Kit

Introduction

FULLY PLUG AND PLAY INSTALLATION - PRINTED INSTRUCTIONS SUPPLIED

Reverse camera kit for FACELIFT 2023+ models (inc 2.8L 4cyl models) that have the stereo shown in the photo below:


We also have a similar kit HERE for the 2020-2023 models:

HEAVY DUTY CAMERA AND CAMERA OVERRIDE SWITCH OPTIONS!



This is a very easy, DIY install kit that is "plug and play"!!
 We use the highest resolution camera possible, with a full METAL housing (not cheap plastic!).


Features


* Ready to go kit, corrugated conduit applied to the camera harness, heat-shrink over the connections. No cutting or soldering required!
* Single connection only (at back of stereo), no need to splice into the vehicles wiring!
* Excellent camera image, higher resolution than factory cameras. Great low light image quality.
* Wide viewing angle (140 degrees), much wider than factory.

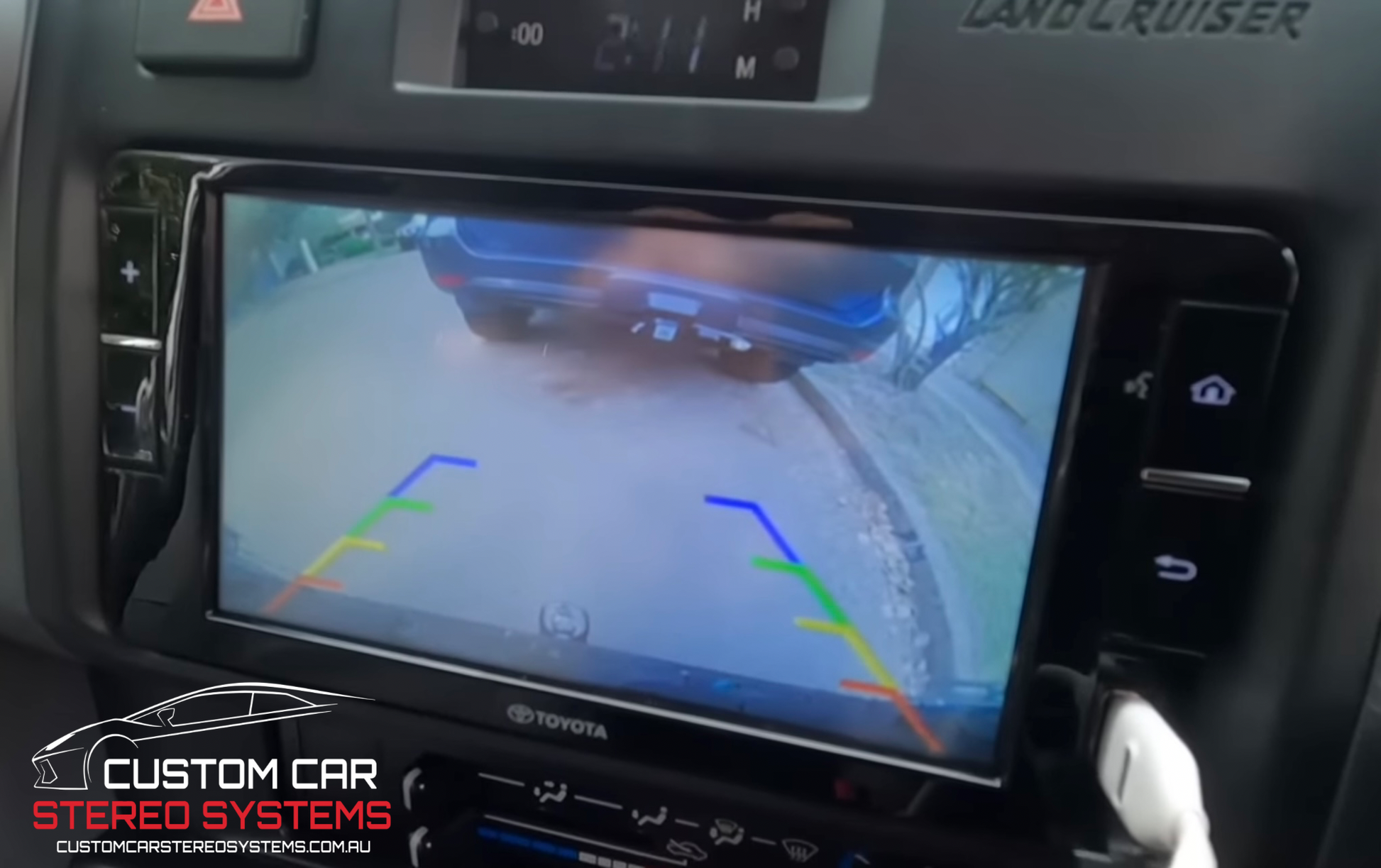

Image from reverse camera will automatically be displayed on the screen when reverse gear is selected.
 2 camera types are available:

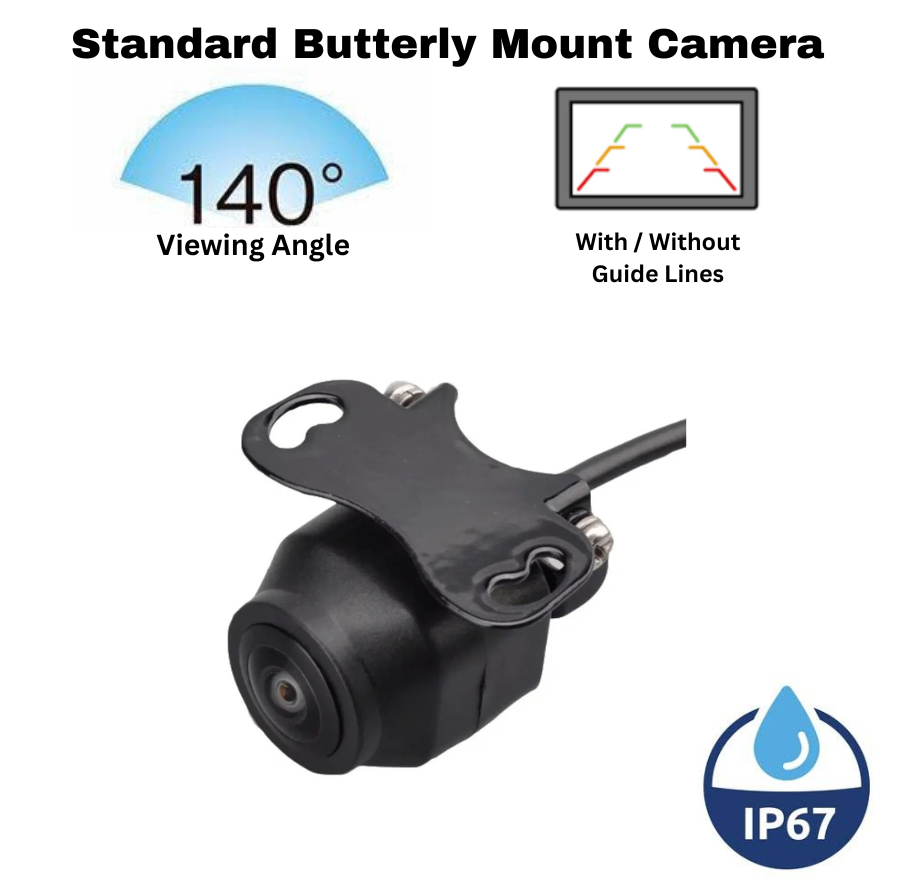

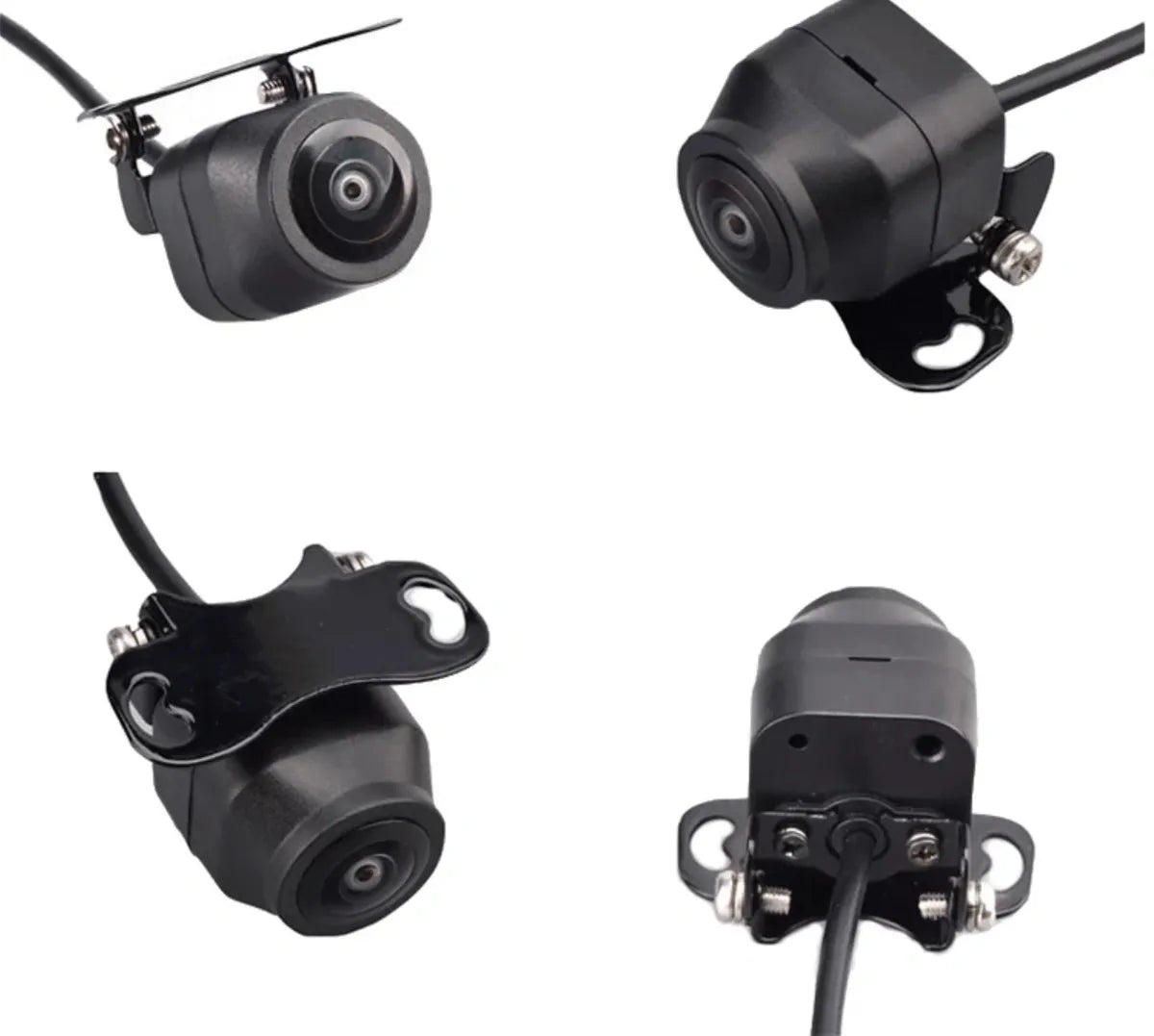

1. Standard square “butterfly“ mount with 140 degree viewing angle and grid line option. IP67 rated.

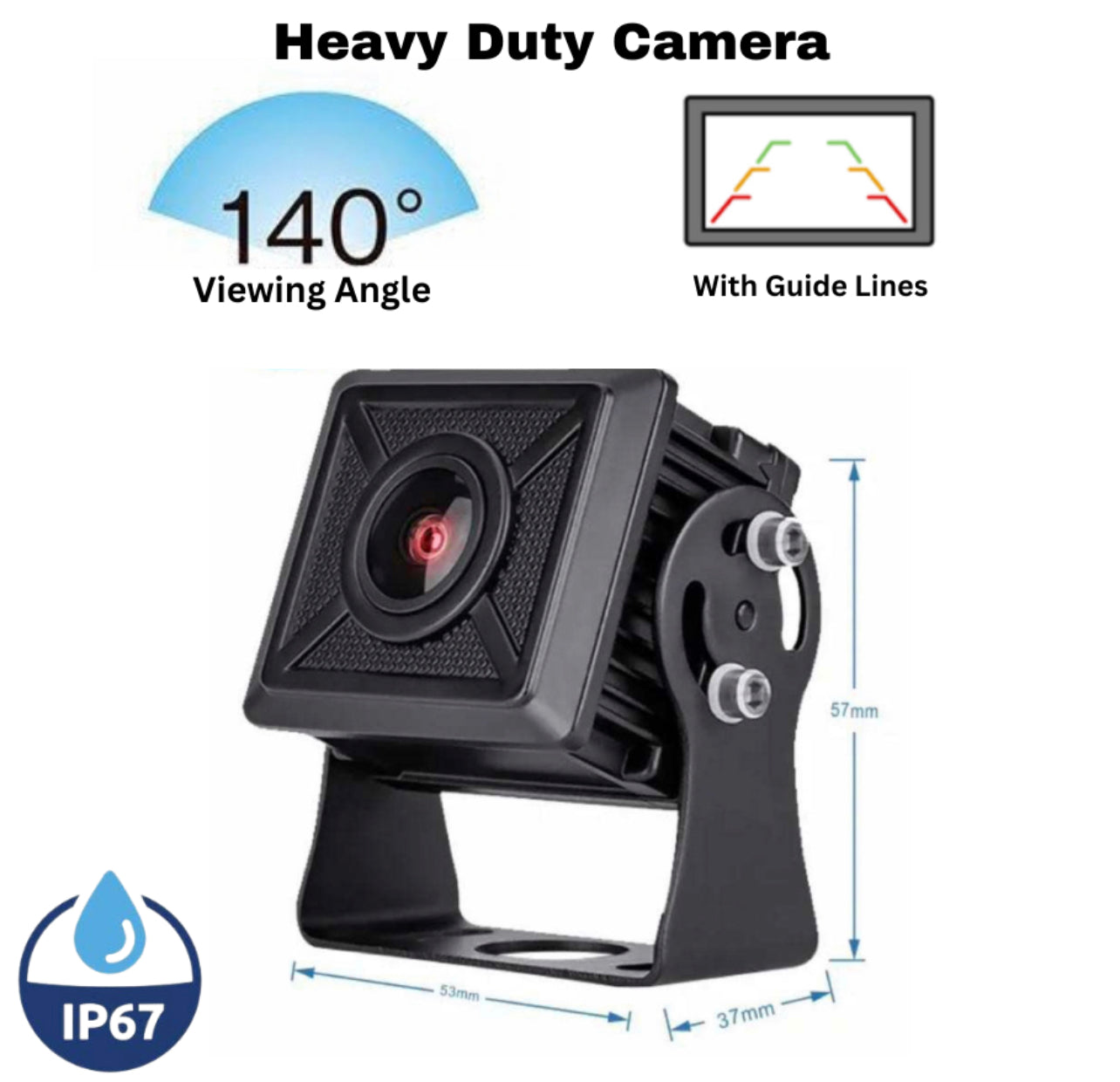

2. Heavy Duty type with 140 degree viewing angle and grid line option. IP67 rated.




Also available with a camera override switch option (also called a “check trailer switch”) - this is also a plug and play kit, comes with a Toyota style switch (with camera view logo and LED indicator). It enables you to view the reverse camera at anytime whilst driving, great for checking on a trailer or when off-roading etc.



Contents

* Reversing Camera with mounting hardware

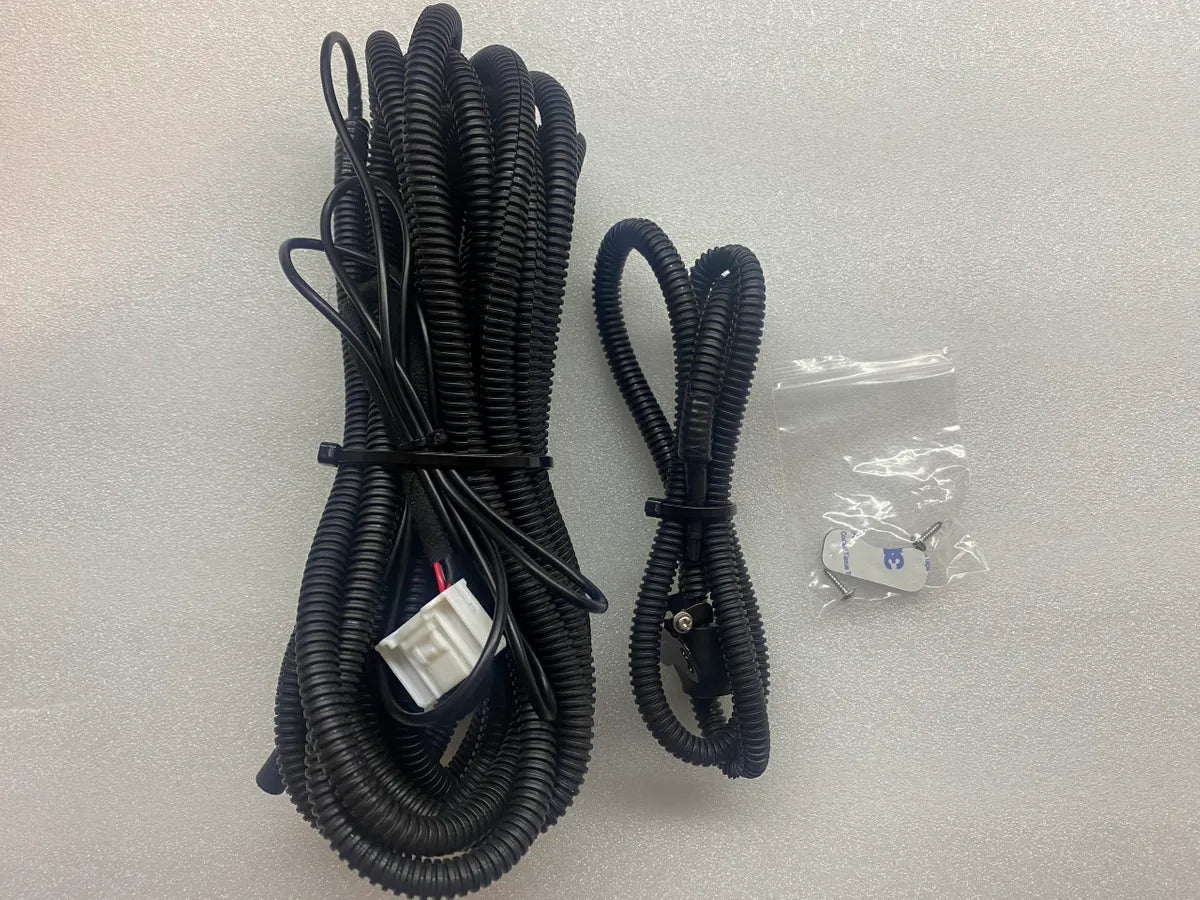

* 6m harness with corrugated conduit applied (glue lined heatshrink applied over the ends)
* Toyota-specific harness that connects directly to the stereo
* Cable ties to secure the harness
* Full printed instructions (with photos) are supplied with the kit
* Cable length from stereo to rear is over 6m! Plenty long enough for dual cab utes and wagons / troop carriers!


Tools Required

* Plastic non marking panel removal tool (available as an optional extra below)
* 10mm socket / ratchet + 4-6” extension (to remove factory unit)
* Wire cutters (to cut cable ties)
* Drill with suitable drill bit and Philips head bit / screwdriver (to mount camera).
Installation in 4 easy steps!
1. Remove facia panel / stereo.
2. Unplug existing harness from back of stereo, connect supplied harness in line with factory harness.
3. Route camera harness to rear of vehicle, use supplied cable ties to secure harness.
4. Select a suitable mounting location for the camera, mount the camera and connect to the harness.



12 months warranty on the camera and harness. Free lifetime tech support 24x7.
Camera Type
Regular price $299.00
Regular price $349.00 Sale price $299.00
Sale Sold out
Tax included. Shipping calculated at checkout.
