Toyota Land Cruiser 70 Series FACELIFT 2023 2024 Dual Camera Switch / Module

Vehicle Compatibility:

Specifically designed for the FACELIFT 2023 onwards Toyota 70 series ute, wagon and troop carrier models.

Note: Video in description is of a 2021 model, but the kit functions remain the same.

Key Features

✅ Connect a second / auxiliary camera to your factory Toyota or aftermarket replacement unit with our exclusive dual camera switch / module!

✅ Works with an existing factory or aftermarket reverse camera (including our kit)

✅ With the switch off, the reverse camera will operate as normal and automatically display when reversing.

✅ Allows an auxiliary camera to be viewed on the factory Toyota screen at ANYTIME whilst driving (the auxiliary camera can be a front facing camera, secondary reverse camera on a canopy or even a caravan camera). This includes displaying the auxiliary camera when reversing.

✅ Music will continue to play when switch is activated when using a factory Toyota unit (NOTE: some aftermarket units will mute when displaying a camera - this is a function of the aftermarket unit)

✅ Plug and play harnesses - no cutting or soldering required.

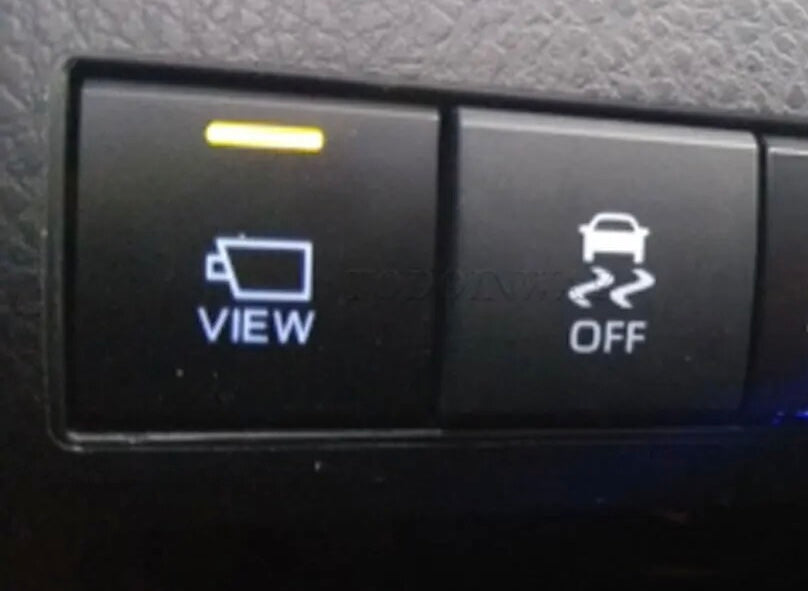

✅ Factory style switch - when switch is off, the existing reverse camera operates as normal.

✅ When “aux camera” switch is activated, the auxiliary camera can be viewed at anytime, including when reversing.

✅ This kit is designed, engineered and constructed right here in Australia by a qualified auto electrician. You will not find this exact kit available from anywhere else!

✅ 12 months warranty on all components, including switch, module, harnesses and camera. Warranty does NOT cover damage due to poor installation or misuse. Please read the install / user guide thoroughly before installing this product.

✅ Kit is available in 4 options (see “kit types” tab and product images for more info):

Kit Types



Type 1:

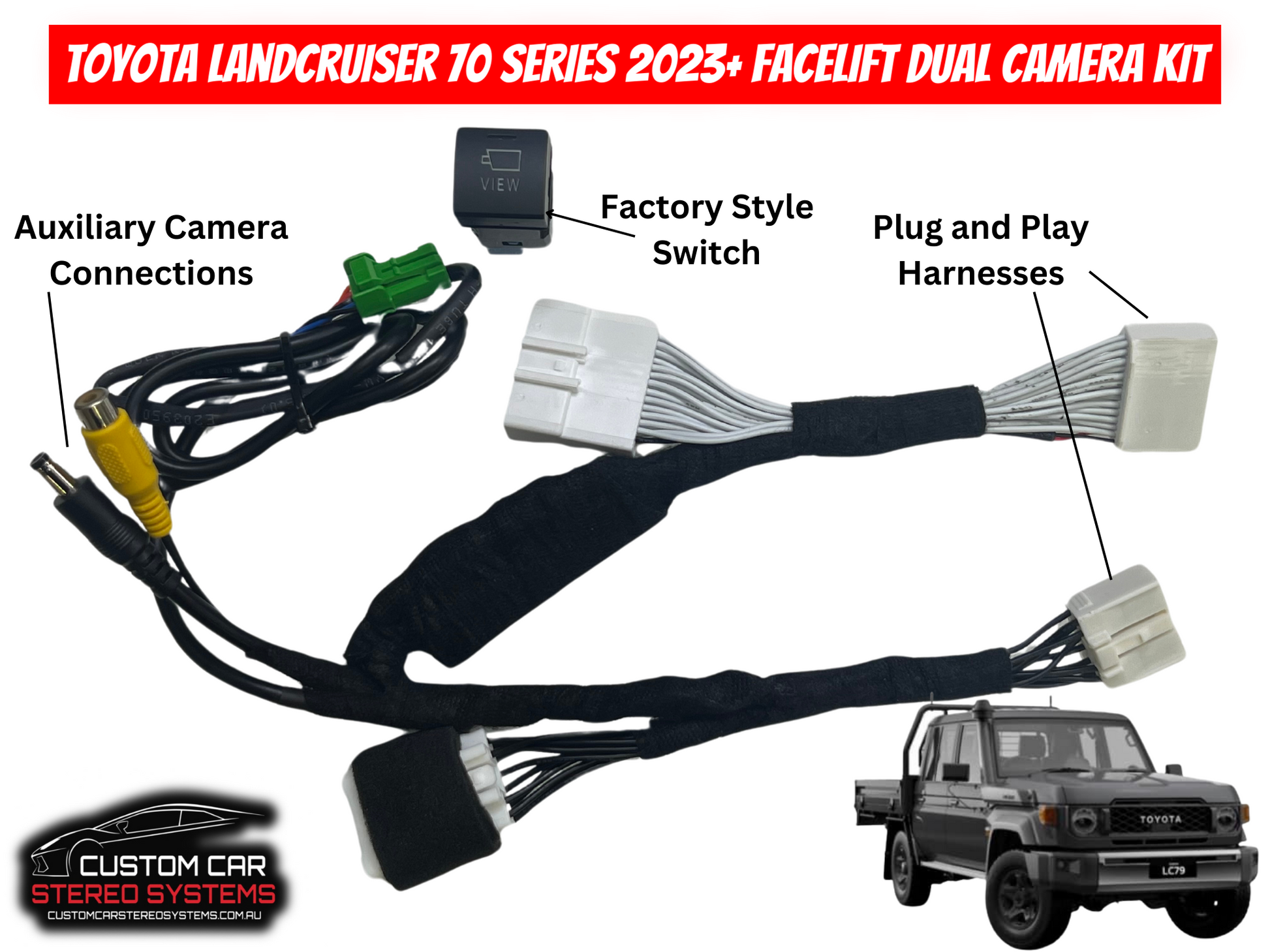

* Dual camera module

* Factory style switch



* Plug and play harness for vehicles with an existing reverse camera

* RCA and power connections for auxiliary camera

Type 1 suits customers with an aftermarket stereo and existing reverse camera who would like to add their own camera to their system. NOTE: Auxiliary camera must be NTSC format to match the factory camera / screen. Please check with the camera manufacturer before ordering. Some cameras may also need an adapter. Check the connection type before ordering.



Type 2:

* Dual camera module

* Factory style switch

* Plug and play harness for vehicles with an existing reverse camera

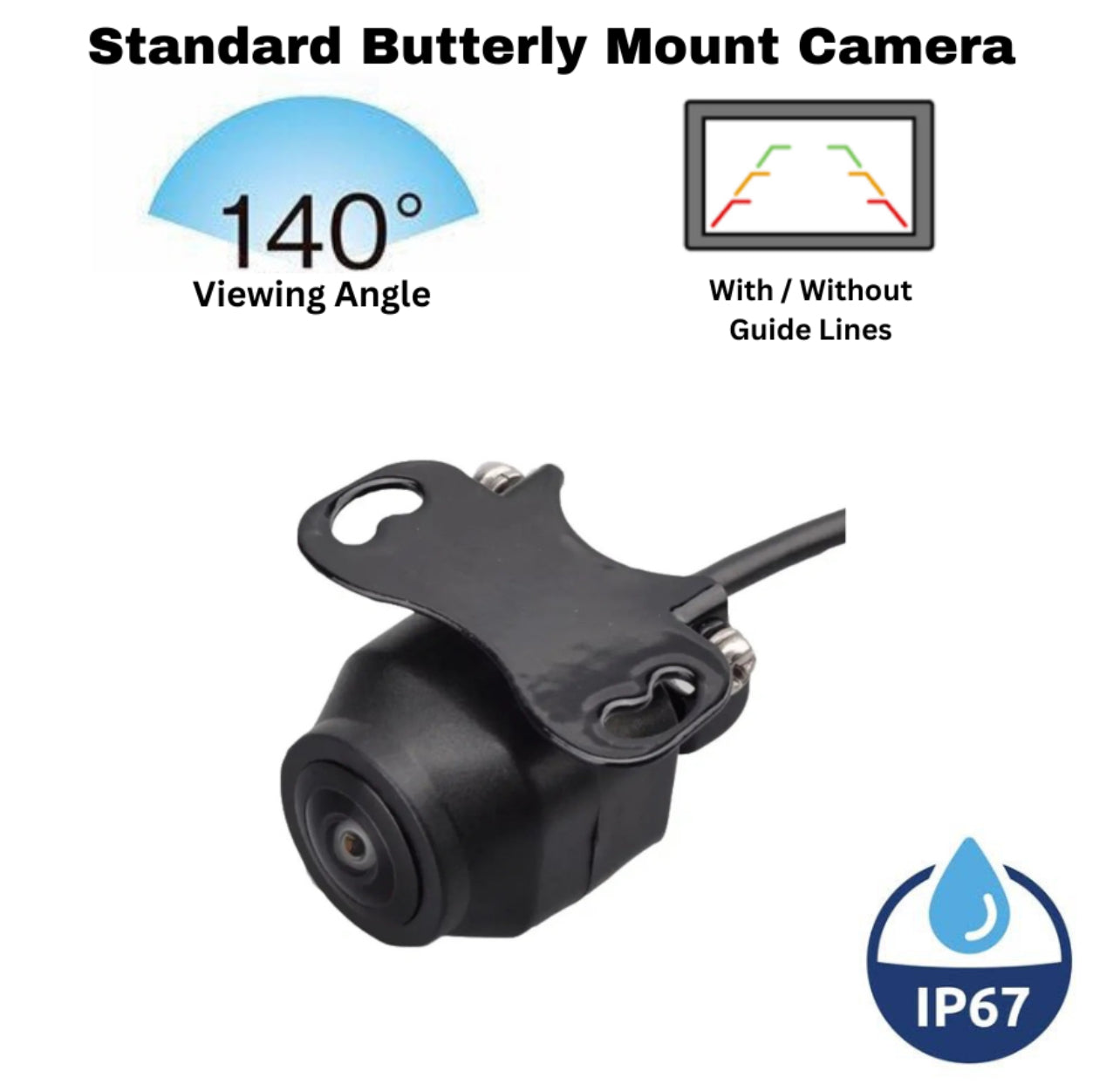

* Standard butterfly mount camera with plug and play 10m harness (easily long enough for canopy mounted cameras)

Type 2 suits customers with a factory Toyota stereo and existing reverse camera who would like to add an extra STANDARD camera to their system





Type 3:

* Dual camera module

* Factory style switch



* Plug and play harness for vehicles with an existing reverse camera

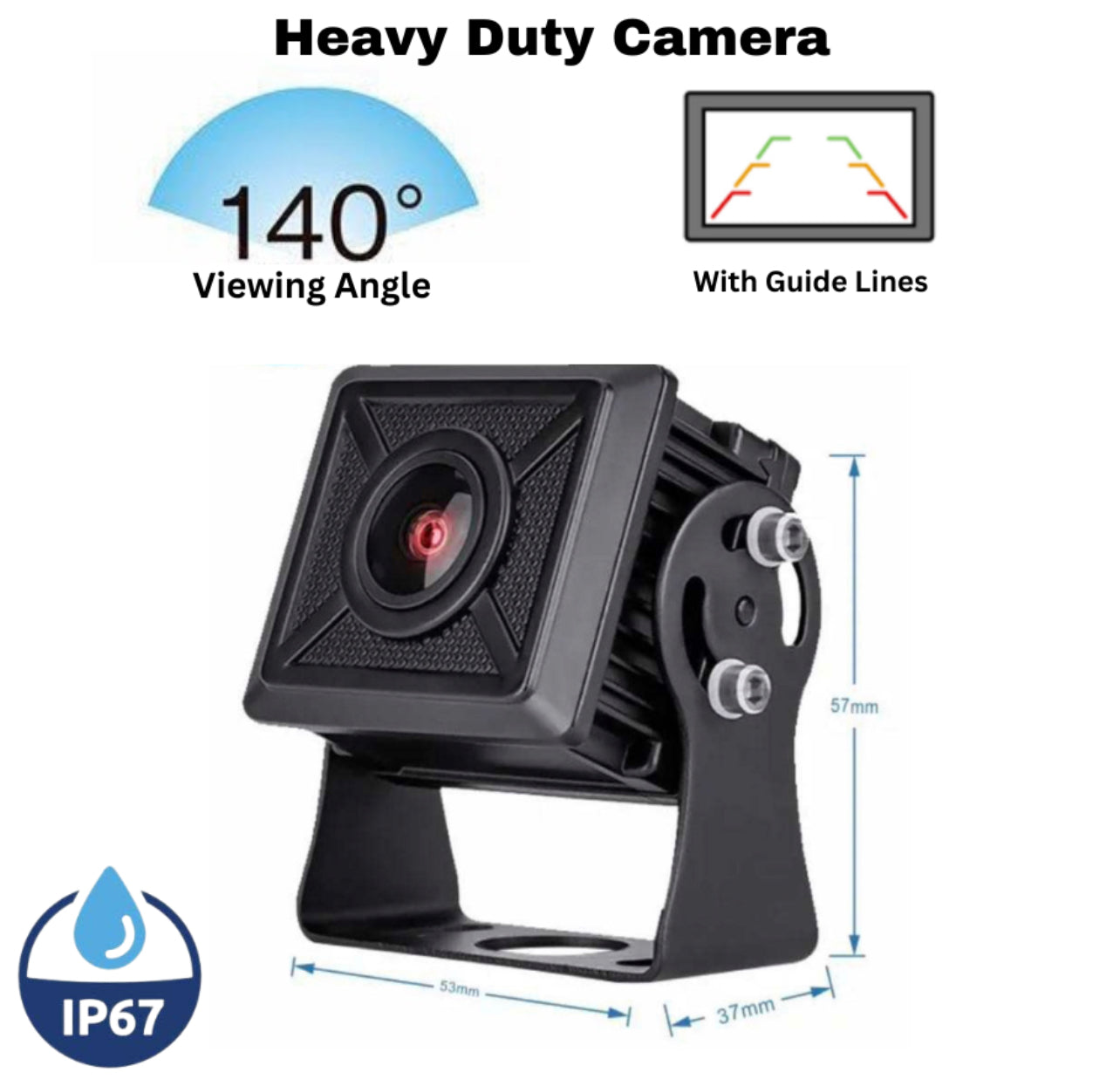

* Heavy duty aux camera with plug and play 10m harness (easily long enough for canopy - mounted cameras)

* Type 3 suits customers with a factory Toyota stereo with existing reverse camera who would like to add an extra HEAVY DUTY camera to their system.



Type 4:



* Dual camera module

* Factory style switch

* Plug and play harness for vehicles without an existing reverse camera

* 2 x standard butterfly mount cameras

* Type 4 suits customers with a factory Toyota stereo without an existing reverse camera who would like to add a reverse camera AND an extra camera to their system.

 Type 5 is the same as type 4 but with 2 x heavy duty cameras. PLEASE NOTE: Our heavy duty cameras are not suitable as a front / forward facing camera.
