Toyota Prado 2018 - 2023 Upgraded Reverse Camera

Photos shown are from a 2014 model, product is virtually the same in 2018-2023 models.

Fully PLUG AND PLAY upgraded reverse camera for Toyota Prado 150 series - suitable for the following models:



2018-2023 GX / GXL / VX with SPARE WHEEL ON TAILGATE

Does not suit the flat tailgate models and/or models with the factory 360 camera system.

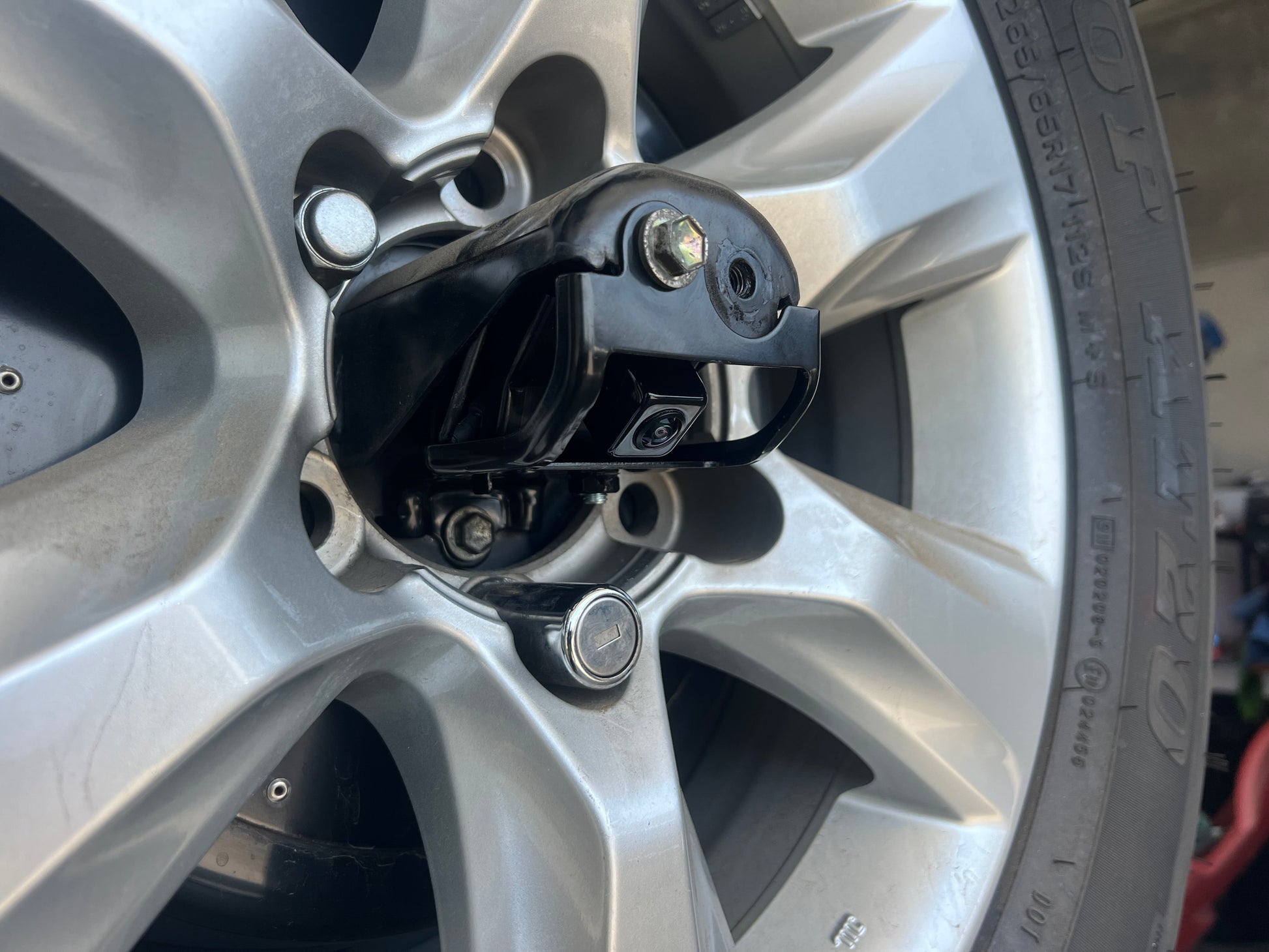

Supplied with new metal bracket and factory style connector - no need to run new cables or cut any wiring. ~15 minute installation!

Designed to replace a factory fitted reverse camera only! Does not include a new harness as it uses the existing one.

(NOTE: New camera has slightly different connector to the factory version, but it will still match up and connect fine)

Available in 2 options:

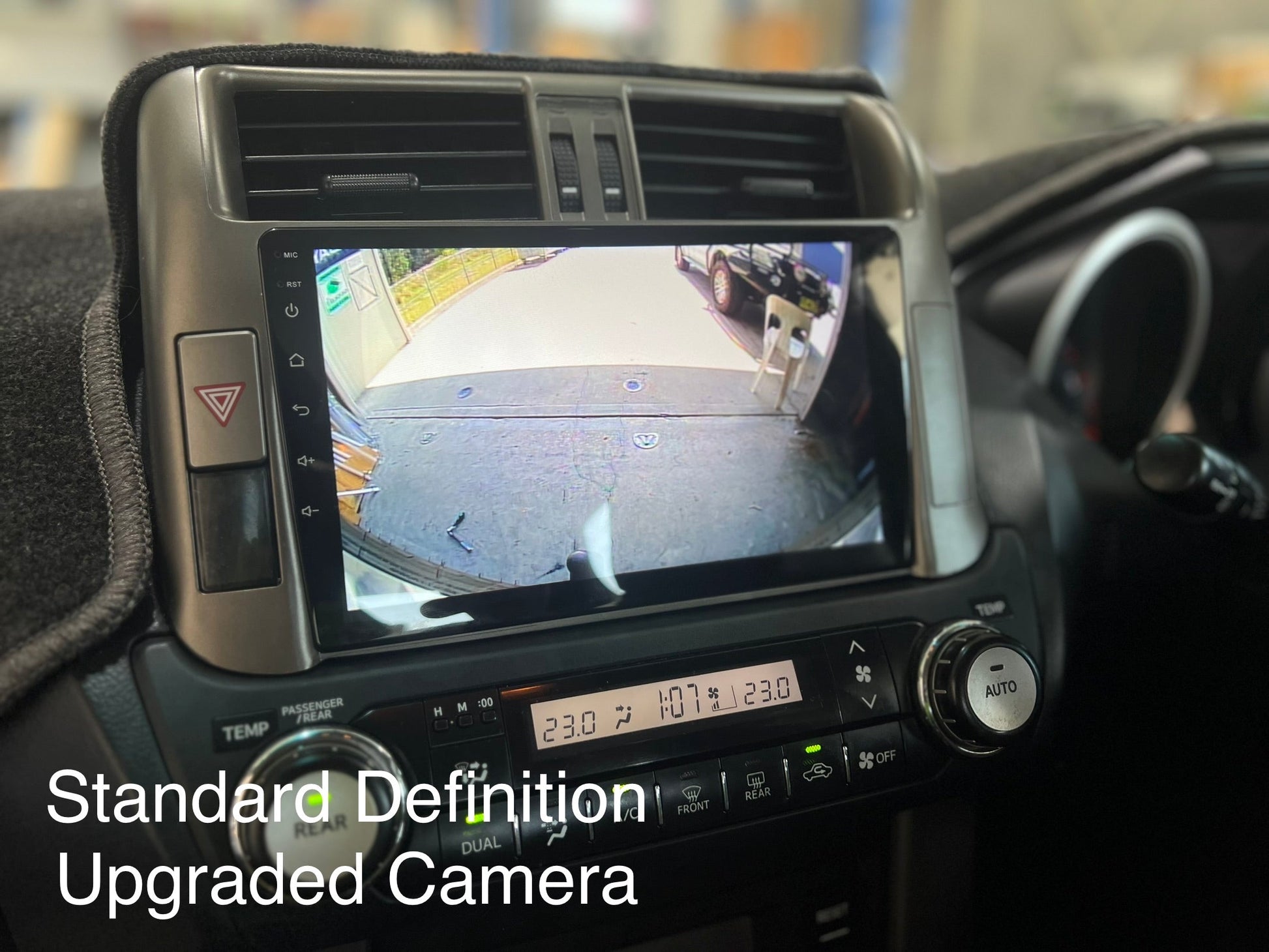

Standard Definition

Suitable for the factory Toyota system and most aftermarket stereo systems.

Specifications:

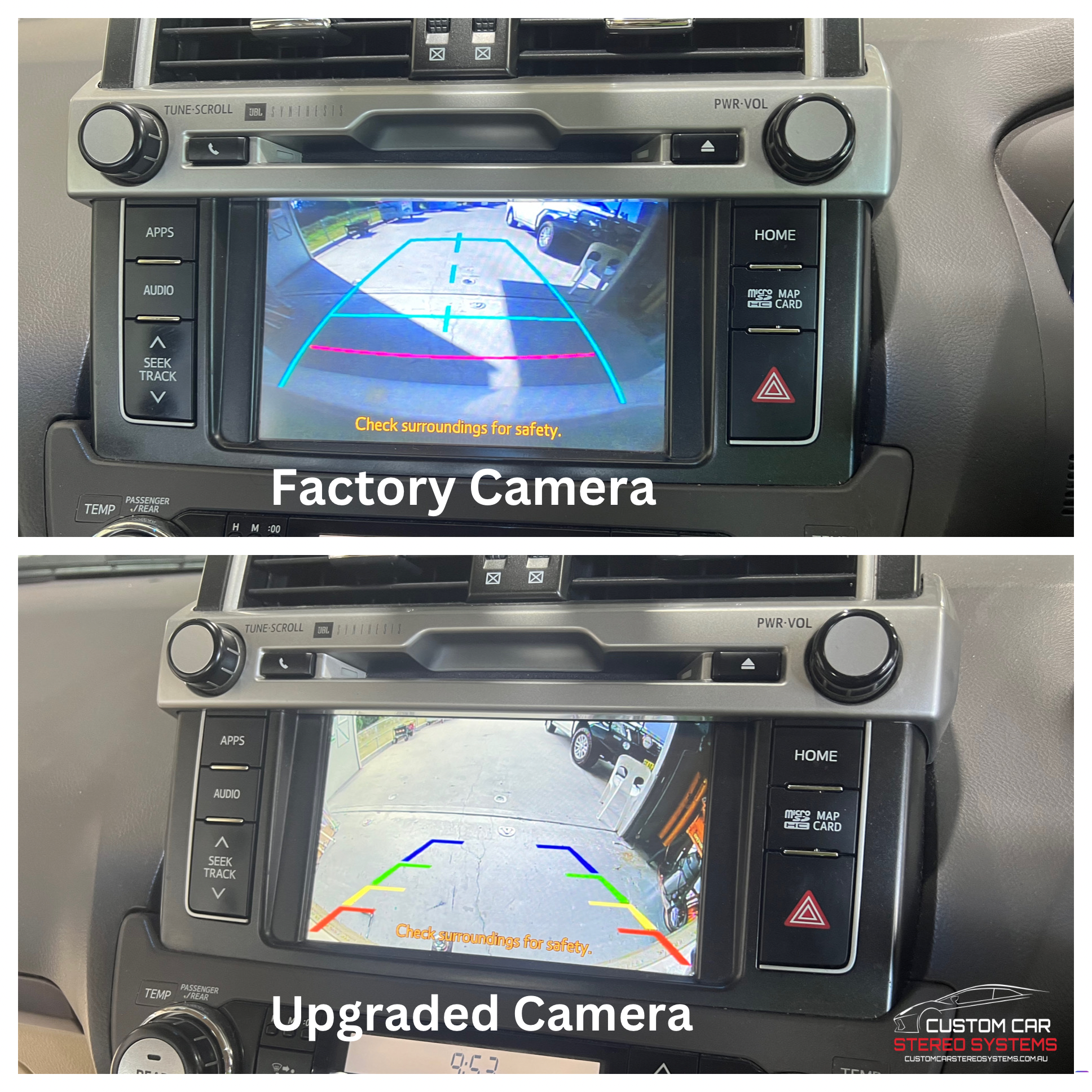

Resolution: 480p (standard camera is 240p)

Viewing Angle: 140 degrees (standard camera is 110 degrees)

Video format: NTSC

Minimum Lux: 0.1

Voltage: 6.0v (matches factory camera voltage)

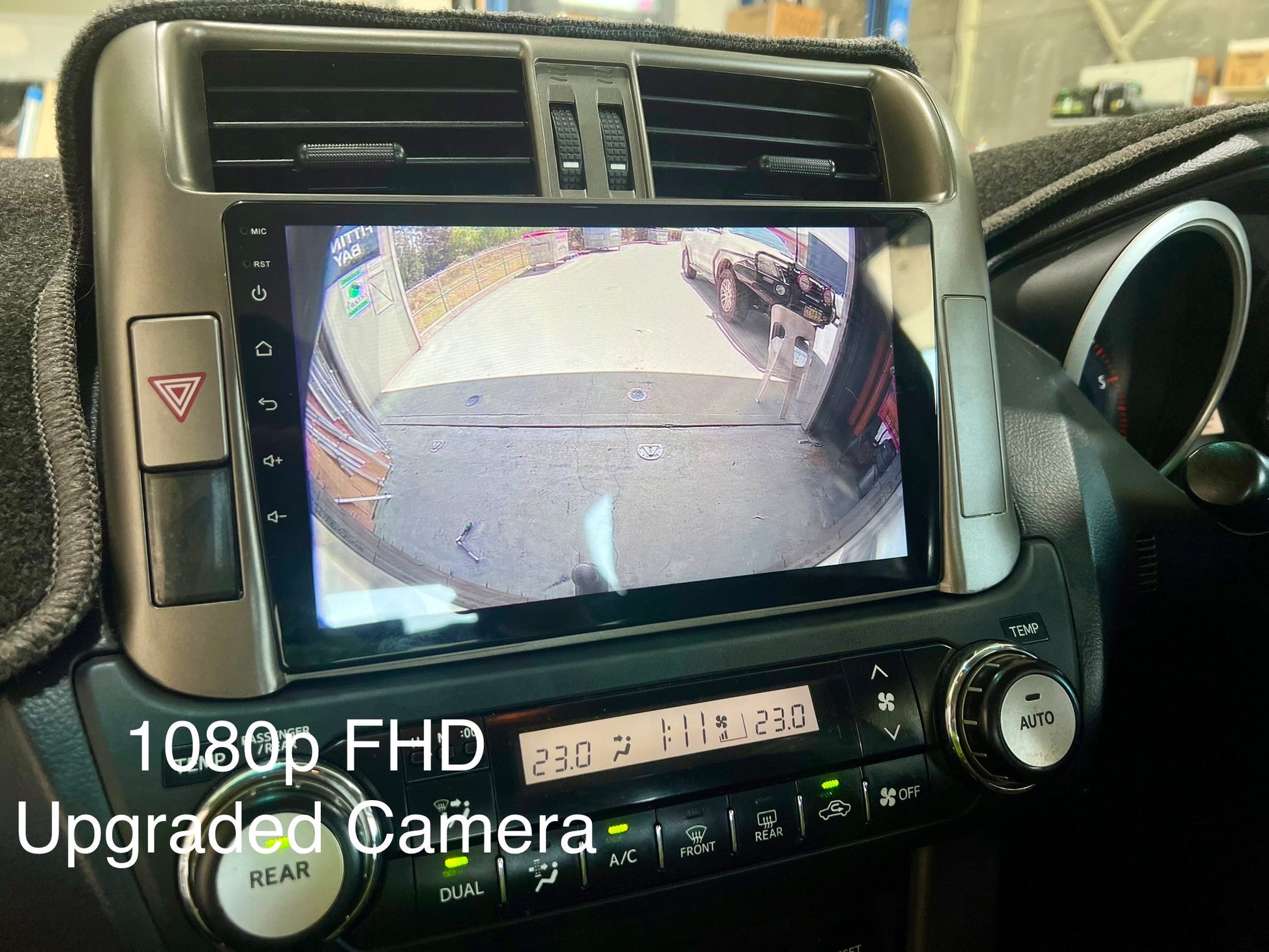

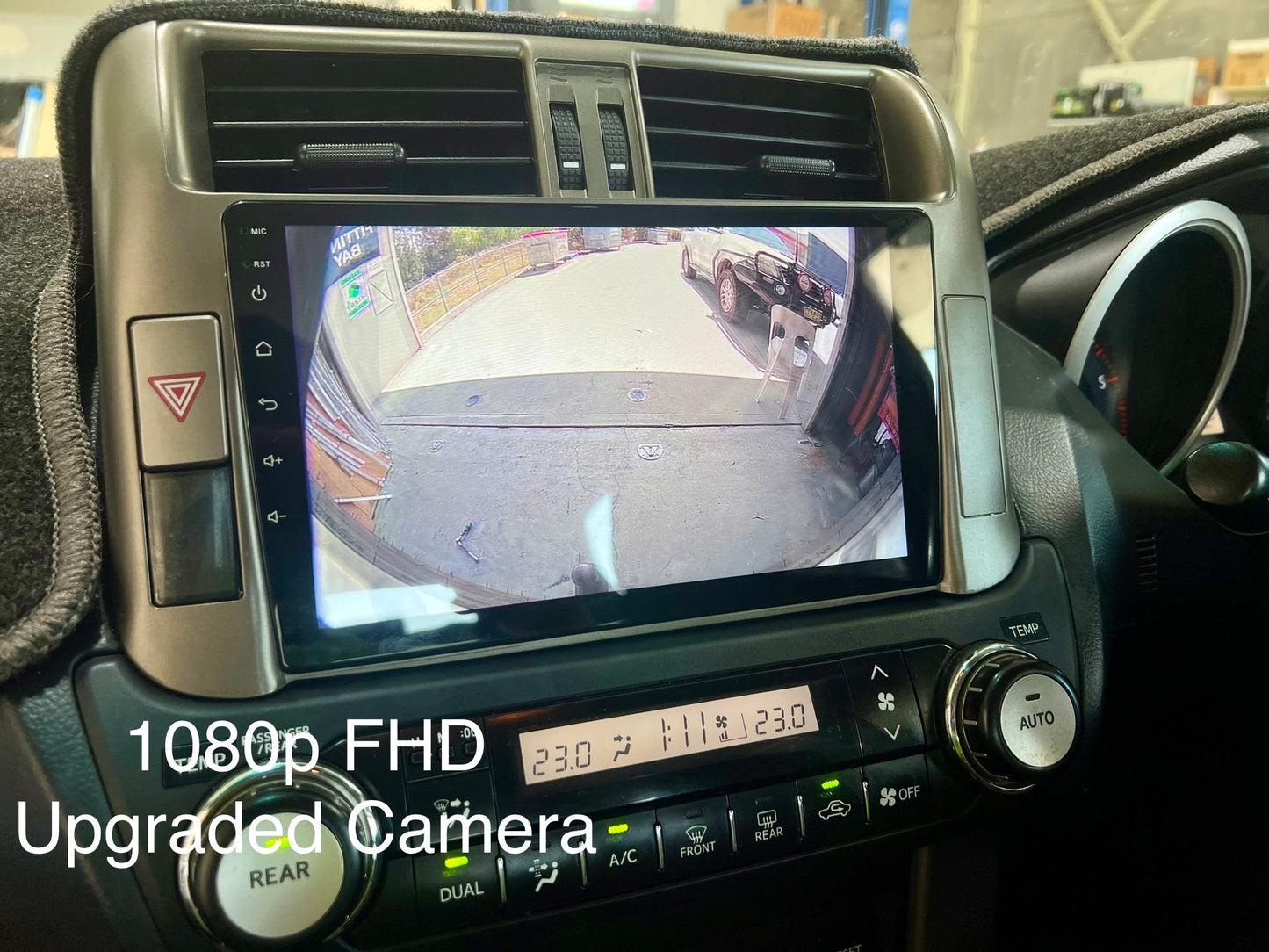

Full High Definition (FHD 1080p)

Suitable for most Android-based replacement units (including our units) with 9.0” / 10.1” screens (please check with your units manufacturer before ordering).

OUR HD VERSION DOES NOT SUIT THE FACTORY STEREO SYSTEM OR MOST “BRAND NAME” AFTERMARKET UNITS (this includes Kenwood, Pioneer, Alpine, Sony etc). Please choose our standard definition version - this is still a great upgrade for these units.

Specifications:

Resolution: 1080 FHD @ 30fps

Viewing Angle: 170 degrees ultra wide angle

Video format: AHD1080p 30fps

Minimum Lux: 0.1

Voltage: 6.0v (matches factory camera voltage)



NOTE: To see the tow ball, you will need to remove the spare wheel cover (if fitted) or purchase an extended hitch.



Both models come with 12 months warranty as standard.
